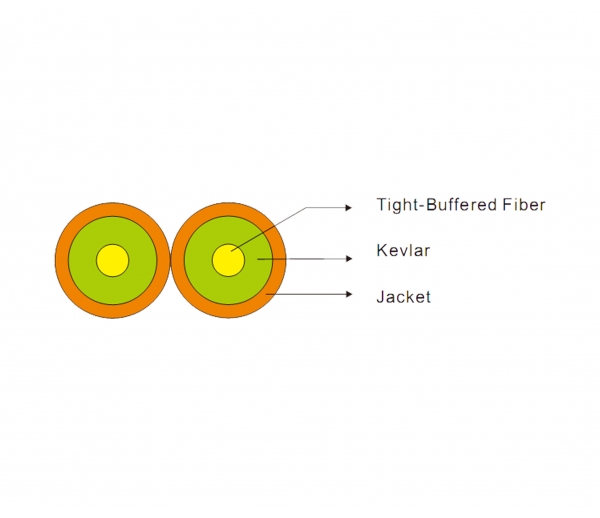

Optronics zip duplex optical fiber patch cable is constructed with two simplex units held together with an overall PVC/LSZH jacket. Ideal for use in office LAN connections, patchcords, pigtails and internal point-to-point links where frequent handling is likely (e.g. data cabinets, equipment rooms, user outlets). Utilising 600μm or 900μm buffered fiber, the cable unit is suitable for use with industry standard connectors and can be easily made into a patchcord.
Parameters
|
Cable Dimension (mm) |
Cable Weight (kg/km) |
Tensile (N) | Crush (N/100mm) | Min.Bend Radius (mm) |
Range of Temperature r-e |
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | |||
| 1.6 x 3.4 | 4.0 | 60 | 120 | - | - | 50 | 30 | -20~+60 |
| 1.8 x 3.8 | 5.0 | 80 | 160 | - | - | 50 | 30 | |
| 2.0 x 4.2 | 6.0 | 100 | 200 | 200 | 1000 | 50 | 30 | |
| 2.4 x 5.0 | 9.0 | 100 | 200 | 200 | 1000 | 50 | 30 | |
| 2.8 x 5.8 | 10.4 | 160 | 300 | 200 | 1000 | 60 | 30 | |
| 3.0 x 6.2 | 11.0 | 160 | 300 | 200 | 1000 | 60 | 30 | |
Feature
Different types to be chosen
Different outer diameters to be chosen
High strength members for ease of handling
Easily stripped
PVC/LSZH jacket for use
Application
Patchcords
Pigtails
Internal inter-connections
