Duplex Flat Indoor Cable

Product Categories: Indoor Fiber Optical Cable

Product advantages:

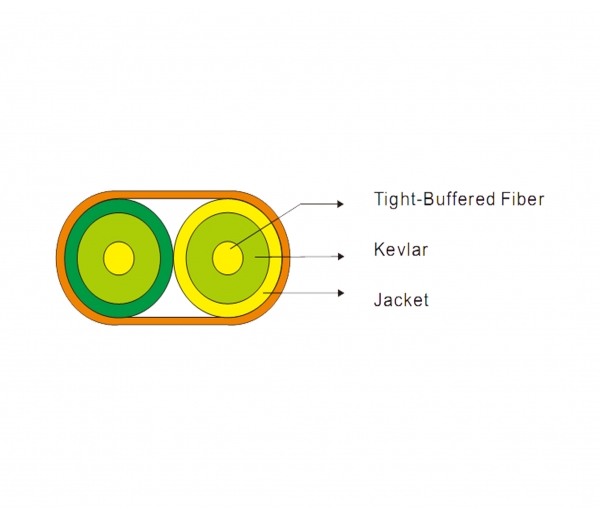

Optronics flat duplex optical fiber patch cable is constructed with two simplex units held together with an overall PVC/LSZH jacket. Ideal for use in office LAN connections, patchcords

PDF Download:

Product Details

Optronics flat duplex optical fiber patch cable is constructed with two simplex units held together with an overall PVC/LSZH jacket. Ideal for use in office LAN connections, patchcords, pigtails and internal point-to-point links where frequent handling is likely (e.g. data cabinets, equipment rooms, user outlets). Utilising 900μm buffered fiber, the cable unit is suitable for use with industry standard connectors and can be easily made into a patchcord.

Parameters

Cable
Dimension
(mm)
Cable
Weight
(kg/km)
Tensile (N) Crush (N/100mm) Min.Bend Radius (mm) Range of
Temperature
r-e
Long Term Short Term Long Term Short Term Dynamic Static
2.8 x 4.8 9.4 100 200 200 1500 100 35 -20~+60
3.0 x 5.0 11.3 100 200 200 1500 100 40
4.0 x 7.0 18.0 160 300 200 1500 100 40

Feature

Different types to be chosen

Different outer diameters to be chosen

High strength members for ease of handling

Easily stripped

PVC/LSZH jacket for use

Application

Patchcords

Pigtails

Internal inter-connections
