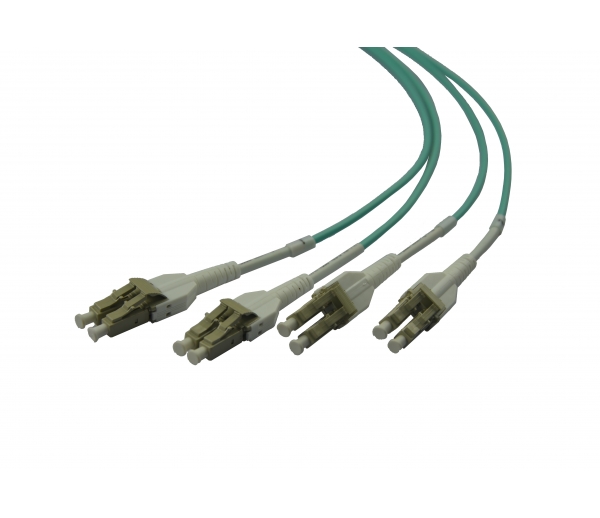

40G QSFP+(MPO/MTP) To 4x10G SFP+(8xLC) Assembly

Product Categories: Patchcords

Product advantages:

40G parallel optics transceivers (40GBASE-SR4) can support 4*10G modes-this feature allow new parallel optics active equipment being compatible with existing 1-G transceiver

PDF Download:

description

40G parallel optics transceivers (40GBASE-SR4) can support 4*10G modes-this feature allow new parallel optics active equipment being compatible with existing 1-G transceiver. MTP/MPO QSFP+ to SFP+ Fan-out Assemblies provide connections between single QSFP+ (40G transceiver with MTP/MPO interface) and 4*SFP+(10G transceivers with LC(DX) Interface). Parallel optics 40GBASE-XR4 uses 8 out of 12 MTP/MPO interface fibers transmitting 4*Duplex (DX) channels (4*Transmit and 4*Receive). QSFP+ to SFP+ Fanout is 8*Fibers MTO to LC (DX) Ruggedized Fan-out assekbly. Assembly utilizes new miniature version of breakout module saving fiber management space and providing secure transition between cable and tails.

Feature

Space saving design
Provide narrow solution for high density application
High performance and reliability
Save installation time and labor
Next generation network proof

Parameters

Fiber Type SM Ferrule SM Low-Loss Ferrule MM Ferrule MM Low-Loss Ferrule
Insertion Loss Max(dB) 0.35 0.20 0.35 0.20
Insertion Maximum(dB) 0.70 0.35 0.60 0.35
Return Loss(dB) PC≥50, UPC≥50, APC≥60
Male/Female Male: With Pins        Female: Without Pins
Repeatability(dB) ≤0.2  (500 times)
Operating Temperature -40~+85
Connector Performance LC,SC (SM) LC,SC Low-Loss (SM) LC,SC (MM) LC,SC Low-Loss (MM)
Insertion Loss Max(dB) 0.30 0.15 0.30 0.15
Return Loss(dB) 50/60 50/60 N/A N/A

Application:

Data center
Storage area network
Infiniband
Parallel optics
40GBASE-SR4 to 4*10GBASE-SR links
