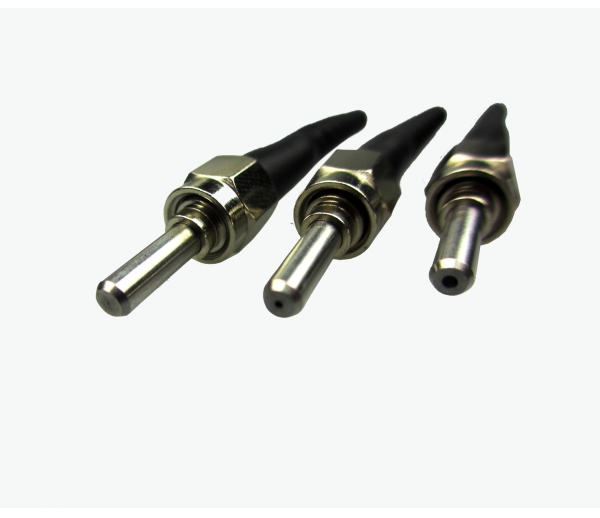

SMA905 Armored Patchcord

Product Categories: Patchcords

Product advantages:

SMA905 optical fiber connector or terminal with air gap protection modified SMA905 metal connecting head,equiped large core diameter energy fiber can meet the general semiconductor laser and low power solider laser of output energy laser transmission.Connector can be used within the environmental protection technology of non glue technology,for further increase energy fiber cooling effect and service life,meet the need of laser welding and cutting that high power transmission.

PDF Download:

description

SMA905 optical fiber connector or terminal with air gap protection modified SMA905 metal connecting head,equiped large core diameter energy fiber can meet the general semiconductor laser and low power solider laser of output energy laser transmission.Connector can be used within the environmental protection technology of non glue technology,for further increase energy fiber cooling effect and service life,meet the need of laser welding and cutting that high power transmission.

Feature:

Good light through rate

Excellent anti fatigue

Large core diameter optical energy

Tensile strength

Parameters

Specification Parameter
Numerical Aperture 0.22±0.02
Core Diameter(um) 100-1000
Core Material Silica
Cladding Material Silica
Coating Material Acrylic Acid Polymers
Min Bend Radius <60D(D=core)
Core: Coating 1:1.05 or 1:1.4
กก UV(0.20-0.4um) 85-98
กก Visible Light(0.4-0.7um) 97-99
Transmission(%/mo) Infrared(0.76-1.6um) 99
กก He-Ne(0.6238um) 98
กก YAG(1.06um) 98
Transmission Power(w) >130(core diameter0.5@1.06um)
Operating Temperature -40+85

Application:​

Optical measurement applications

Medical optical detection equipment

Detection of food safety

Factory automation

Cars, planes and military application
