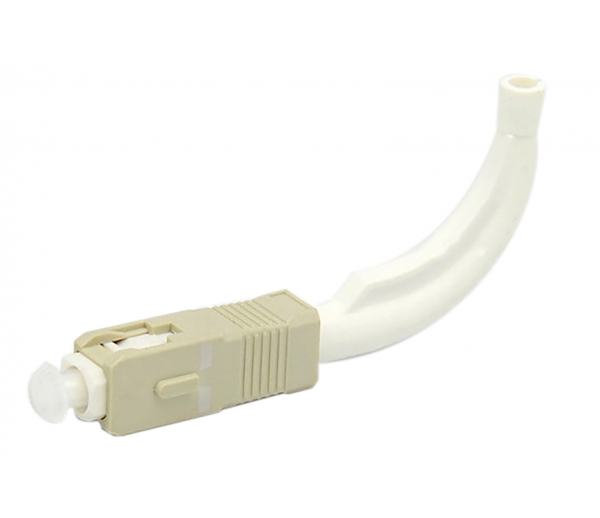

90 Degree Boot Optic Fiber SC

Product Categories: One-piece Connectors

Product advantages:

90 degree boot optical fiber connector is ultra reliable components featuring low insertion loss. They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard.

PDF Download:

description

90 degree boot optical fiber connector is ultra reliable components featuring low insertion loss. They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard.

Feature

Low insertion loss

High return loss

Good reliability and stability

100% will be inspected before shipment

Parameters

Parameter   SM MM
Connector Type LC, SC
Polish PC UPC APC N/A
Insertion Loss(dB) 0.3
Return Loss(dB) R50 R55 R60 N/A
Color Beige, blue, green, black, yellow
Durability(dB) Q0.3 (1000 times)
Operating Temperature -40~+85

Application

Telecommunication networks

Active device termination

CATV, WAN, LAN

Medical industry and military industry

Testing equipment
