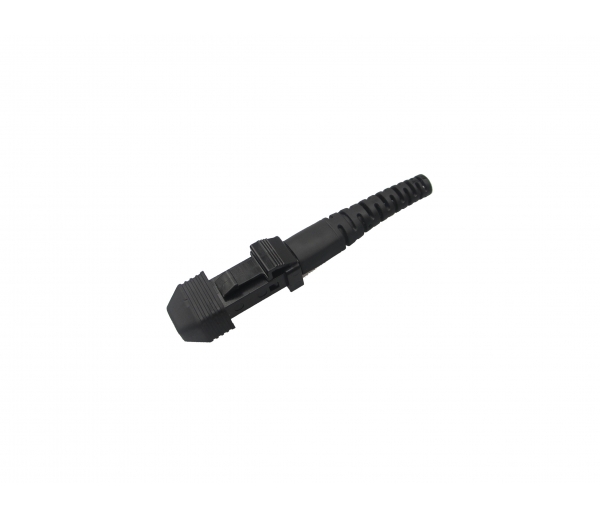

MTRJ Connector

Product Categories: One-piece Connectors

Product advantages:

MTRJ is a optical fiber cable connector that is very popular for small form factor devices due to its small size. Its size is slightly smaller than a standard phone jack and just as easy to connect and disconnect. Housing two fibers and mating together with locating pins on the plug, the MTRJ comes from the MT connector, which can contain up to 12 fibers.

PDF Download:

description

MTRJ is a optical fiber cable connector that is very popular for small form factor devices due to its small size. Its size is slightly smaller than a standard phone jack and just as easy to connect and disconnect. Housing two fibers and mating together with locating pins on the plug, the MTRJ comes from the MT connector, which can contain up to 12 fibers.

Feature

Low insertion loss

High return loss

High interface performance

Good repeatability and exchangeability

High precision alignment

Parameters

Parameters

Parameter SM MM
Insertion Loss(dB) Concentricity<1.0um ≤0.3 ≤0.3
Low Loss(dB) Concentricity<0.5um ≤0.2 ≤0.2
Surface PC UPC APC N/A
Return Loss(dB) ≥50 ≥55 ≥60 N/A
Repeatability(dB) ≤0.3 (500 times)
Operating Temperature -40~+85

Application

LAN, WAN, CATV

Telecom network

Data processing network

Medical industry and military industry

Testing equipment
