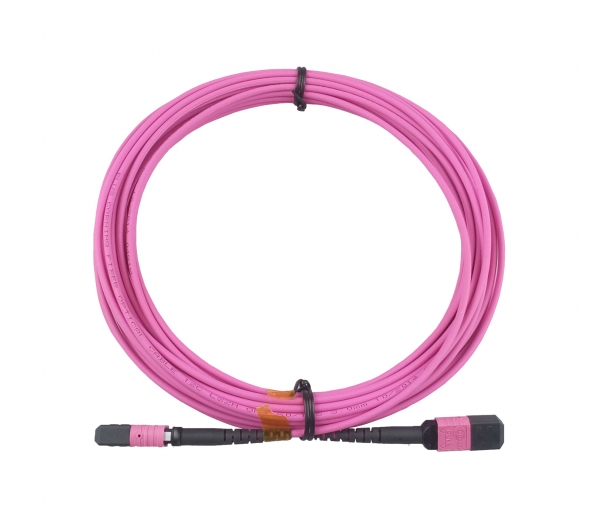

MPO High Performance Armored Patchcords

Product Categories: MPO Series

Product advantages:

MTP/MPO micro cable patchcord facilitate rapid deployment of high density cabling indata centers of other high fiber environments reducing network installation or reconfiguration time and cost.

PDF Download:

Product Details

MTP/MPO micro cable patchcord facilitate rapid deployment of high density cabling indata centers of other high fiber environments reducing network installation or reconfiguration time and cost. They are offered as standard 12 fibers using a compact and rugged 3.0mm Single Jacket MicroCable structure. The compact cables optimises patch cable-way use and improves the airflow. MTP/NPO MicroCable patchcords are built with highest quality components. Standard MTP/MPO as well low loss Elite versions are offered featuring low insertion loss for demanding high speed networks with critical power budget requirements.



Feature

High quality ferrules

Provide narrow solution for high density application

High performance and reliability

12*fiber ferrule MPO/MTP



Parameters

Fiber Type SM Ferrule SM Low-Loss Ferrule MM Ferrule MM Low-Loss Ferrule
Insertion Typical(dB) 0.35 0.10 0.35 0.10
Insertion Maximum(dB) 0.70 0.35 0.60 0.35
Housing Color Green Yellow Beige Aqua
Return Loss(dB) PC≥50, UPC≥55, APC≥65
Male/Female Male: With Pins        Female: Without Pins
Repeatability(dB) ≤0.2  (500 times)
Operating Temperature -40~+85

Application

Data center infrastructure

Storage area network

Optical switch and router

Emerging 40Gbps and 100Gbps protocols compatible
