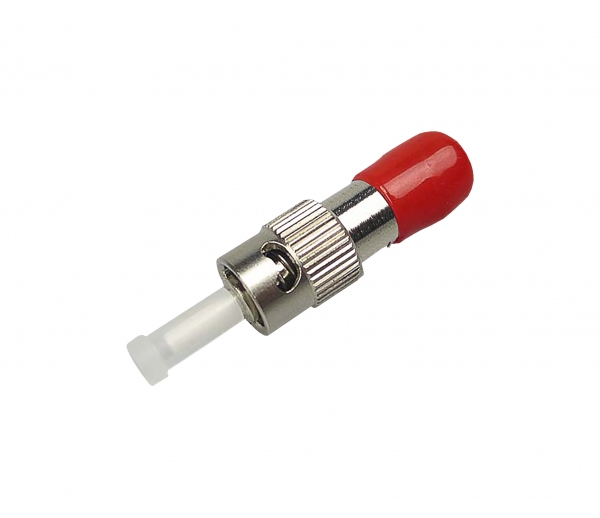

Plug-type ST Attenuator

Product Categories: Attenuators

Product advantages:

Optical fiber attenuators are used in the optical fiber communications to reduce the optical fiber power at a certain level, the most commonly used type is female to nale plug type optical fiber attenuator.

PDF Download:

Product Details
Optical fiber attenuators are used in the optical fiber communications to reduce the optical fiber power at a certain level, the most commonly used type is female to nale plug type optical fiber attenuator. Plug type FC attenuator has the optical fiber connector at one side and the other side is a female type optical fiber adaptor.

Feature

High precision size
Excellect stability
High return
Simple structure
Broad wavelength band

Parameters

Parameter Specification
Wavelength (nm) 1310±30 (nm) & 1550±30 (nm)
Precision (dB) 1 to 5: ±0.5,        6 to 30: ±10%
Return Loss (dB) ≥50(PC), ≥55(UPC), ≥65(APC)
Operating Temperature -40~+75

Application

Teecommunication system
EDFA
EPON/GPON
CATV
High power element
