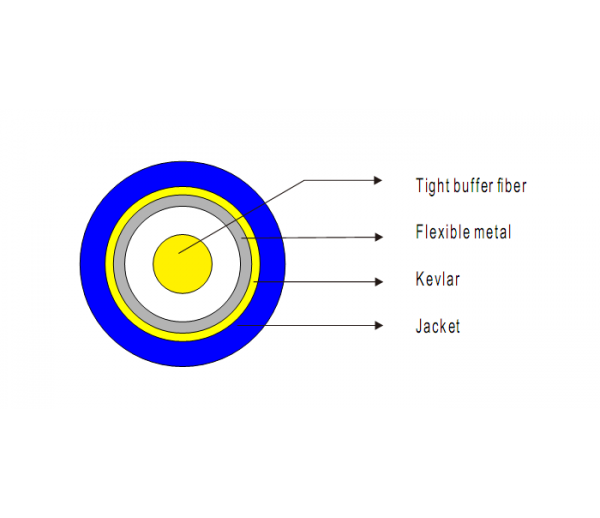

The simple round armored fiber cable, that is, outside of the fiber and then wrapped in a layer of protective "armor", mainly used to meet the customer rodent bite, moisture and other requirements.
Parameters
| Item | Singlemode | Multimode | |||
| Outer Diameter | 3.0mm | 3.0mm | |||
| Standard Color | Blue | Gray | |||
| Cable Weight | 12kg/km approx. | ||||
| Operating Temperature | -40¡æ~+75¡æ | ||||
| Tensile Strength | Short Term | 150N | |||
| Long Term | 80N | ||||
| Compression Resistant Strength | ≥150KGf/100MM | ||||
| General Attenuation | 1310nm | ≤0.35dB/km | 850nm | ≤3.0dB/km | |
| 1550nm | ≤0.25dB/km | 1300nm | ≤1.0dB/km | ||
| Bending Radius | Dynamic | 45mm | |||
| Static | 30mm | ||||
Feature
Flexible metal tube protection
High compression resistant, high tensile resistant, rat-bite resistant
Bend resistant and optimum flexible
Easily wiring, secured and reliable
Application
Internal inter-connections
Patchcords
Suitable for indoor and outdoor wiring construction
