Parameters
| Item | Specification |
| Central Wavelength | 650 ± 10nm |
| Output Power | >3mW (Into Single-mode Fiber) |
| Spectral Width | < 10nm |
| Transmission | CW or 2.5Hz Pulse |
| Batteries | 2 x AAA Alkaline Batteries |
| Operating Temperature | 0-50¡æ |
| Dimension/Weight | 13.5mm x 170mm / 88g (Include Battery) |
| Light Source | Class 3B Laser Diode |
Feature

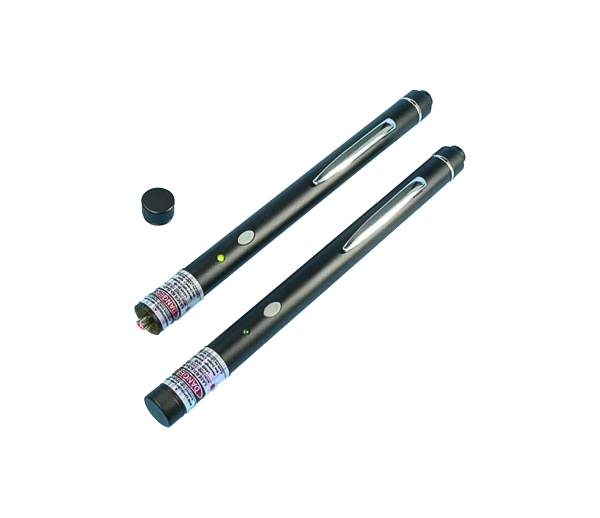

Visual Fault Locator is used for locating broken point in fiber
Visual Fault Locator is equipped with a 650-nm visible laser diode, can be operated in continuous or pulse modes for clear noticeable results
One green LED indicators shows the operating mode
Power switch on the end for battery on/off
Push button operate CW/Mod (2.5Hz frequency)/pause
Clip pocket-size pen design
Low Battery Indicator: The Status LED will turn to ren when batteries are low
