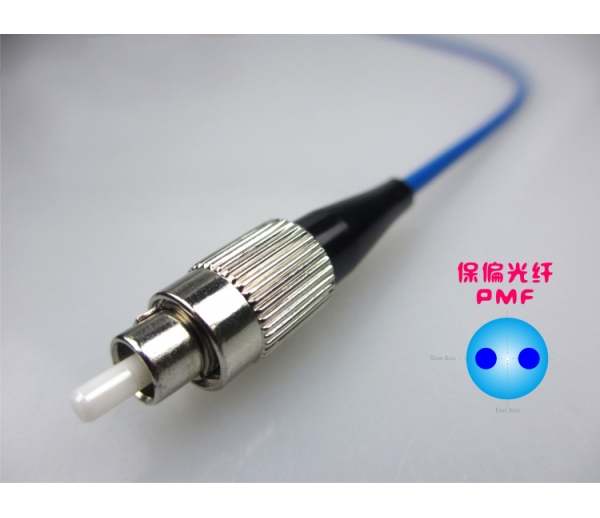

Polarization maintaining fiber (PMF) is manufactured using the high precision Plasma Chemical Vapor Deposition (PCVD) process. This process produces preforms with precise refractive index profiles, material uniformity and dimensional tolerances, resulting in fibers with excellent birefringence, low attenuation and extremely tight tolerances.With dual-layer, UV-cured Acrylate coating, the polarization maintaining fiber provides.
Feature
Fast axis precision positioning slow axis
Excellent polarization maintaining properties
Tight geometric tolerances and very low attenuation
High environment stability and reliability
Parameters
Fiber Type |
PM980 125- 25/250 |
PM1310 125- 13/250 |
PMF14XX 125- 13/250 |
PMF1550 125- 13/250 |
PMF980 125- 12/250-C |
PMF1310 125- 13/250-C |
PM1550 125- 13/250-C |
Model | PM1015-A | PM1016-C | PM1018-A | PM1017-C | PM1015-A+ | PM1016-C+ | PM1017-C+ |
Operating Wavelength(nm) | 9890 | 1310 | 1400-1490 | 1550 | 980 | 1310 | 1550 |
Mode Field Diameter(um) | 6.5±1.0 | 9.5±1.0 | 9.8±1.0 | 10.5±1.0 | 6.5±1.0 | 9.0±1.0 | 10.5±1.0 |
Attenuation(dB/km) | ≤2.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤2.5 | ≤0.5 | ≤0.5 |
Beat Length(mm) | ≤3.0 | ≤4.0 | ≤4.5 | ≤5.0 | 3.0-5.0 | 3.0-6.0 | 4.5-8.0 |
Typical Cross Talk at 4m(dB) | ≤-40 | ≤-40 | ≤-40 | ≤-40 | ≤-30 | ≤-30 | ≤-30 |
Cross Talk at 100m(dB) | ≤-30 | ≤-30 | ≤-30 | ≤-30 | ≤-20 | ≤-25 | ≤-25 |
Cladding Diameter(um) | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 |
Coating Diameter(um) | 245±7.0 | 245±7.0 | 245±7.0 | 245±7.0 | 245±7.0 | 245±7.0 | 245±7.0 |
Range of Temperature | -50~+80 |
Application
Polarization-sensitive components
High performance transmission laser pigtails
Pigtail to LiNbO3 FOG chip (IOC)
Polarizatiion-based sensors
