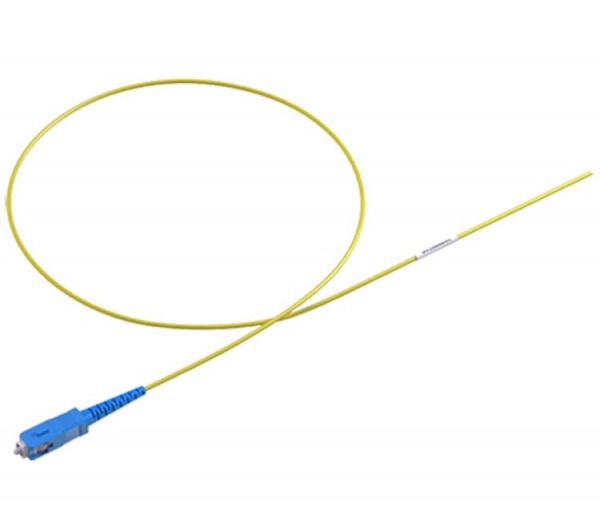

Simplex Round Cable Pigtail

Product Categories: Pigtails

Product advantages:

Cabled pigtails use a ruggedised 2 or 3mm jacket that allows more robust handling while still being suitable for splicing or field termination. Our cabled pigtails are manufactured according to IEC, EIA/TIA or Telecordia standards and are used for telecom networks, high speed metropolitan and access network.

PDF Download:

Product Details
Cabled pigtails use a ruggedised 2 or 3mm jacket that allows more robust handling while still being suitable for splicing or field termination. Our cabled pigtails are manufactured according to IEC, EIA/TIA or Telecordia standards and are used for telecom networks, high speed metropolitan and access network.

Feature

Good repeatability

Low insertion loss

High return loss

Good temperature stability

Tensile strength

Parameters

Specification Parameter
Connectors Types SC/ST/FC/LC/MU/E2000/DIN
Fiber Type SM MM
Return Loss(dB) PC≥50, UPC≥55, APC≥65 N/A
Insertion Loss(dB) ≤0.3
Repeatability(dB) ≤0.2 (1000 times)
Operating Temperature -40~+85

Application

CATV / VIDEO

Passive optical network

WDM / DWDM

FTTH

Data center

ATM, SONET
