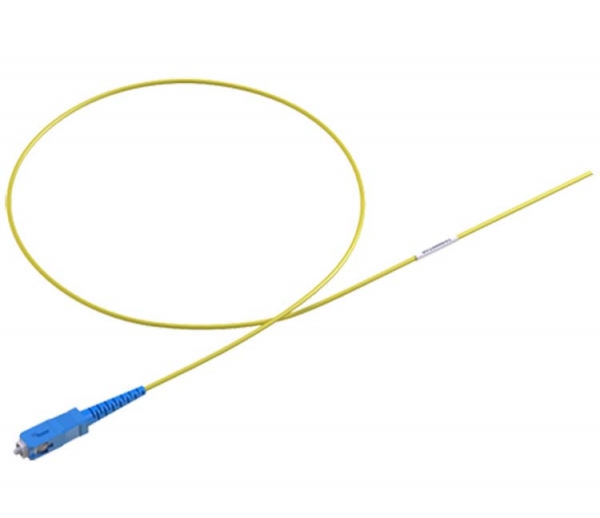

OS2 Singlemode Pigtail

Product Categories: Pigtails

Product advantages:

OS2 singlemode multimode pigtails are used to connect high speed networks like gigabit ethernet, fast ethernet and ethernet. The multimode pigtail buffer conforms to IEC, EIA TIA and Telcordia standards. The multimode pigtails are terminated with standard connector which gives optimum optical performance.

PDF Download:

Product Details

OS2 singlemode multimode pigtails are used to connect high speed networks like gigabit ethernet, fast ethernet and ethernet. The multimode pigtail buffer conforms to IEC, EIA TIA and Telcordia standards. The multimode pigtails are terminated with standard connector which gives optimum optical performance.

Feature

Good repeatability

Low smoke zero halogen (LSZH) buffer

High return loss

Good temperature stability

Tensile strength

Available in standard 12 colors

Parameters

Specification Parameter
Core Diameter(um) 9/125
Connectors Types SC/ST/FC/LC/MU/E2000/DIN
Insertion Loss(dB) ≤0.3
Return Loss(dB) PC≥50, UPC≥55, APC≥65
Repeatability(dB) ≤0.2 (1000 times)
Working Temperature -40~+85

Application

Telecommunication system

LAN, CATV

Optical access network

Data transmission

Testing equipment

Passive optical network
