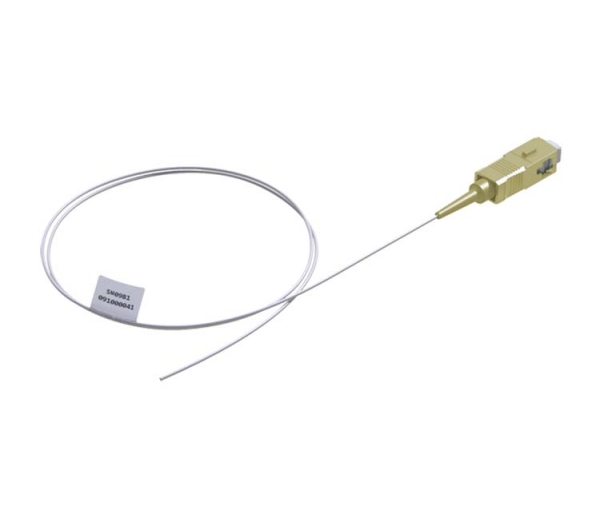

OM1/OM2 multimode pigtails are used to connect high speed networks like gigabit ethernet, fast ethernet and ethernet. The multimode pigtail buffer conforms to IEC, EIA TIA and Telcordia standards. The multimode pigtails are terminated with standard connector which gives optimum optical performance.
Feature
Good repeatability
Low smoke zero halogen (LSZH) buffer
Easy installation
Good temperature stability
Tensile strength
Available in standard 12 colors
Parameters
| Specification | Parameter |
| Connectors Types | SC/ST/FC/LC/MU/E2000/DIN |
| Insertion Loss(dB) | ≤0.3 |
| Repeatability(dB) | ≤0.2 (1000 times) |
| Operating Temperature | -40~+85 |
Application
Telecommunication system
LAN, CATV
Optical access network
Data transmission
Patch panels, wall boxes
Passive optical network
