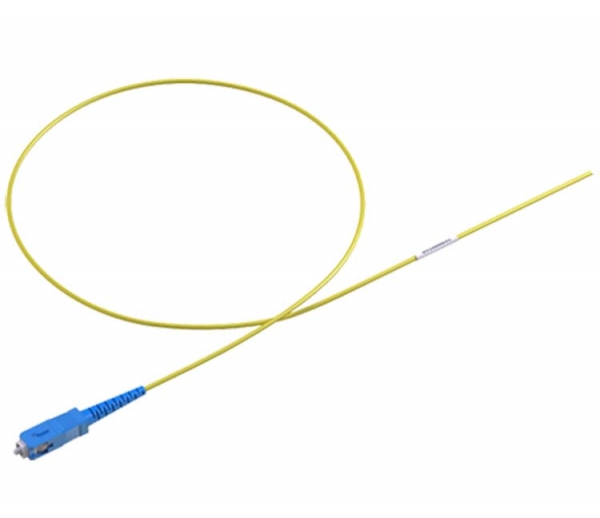

G657 Bend-insensitive singlemode pigtails exhibit much lower optical power loss under bend conditions while remaining compatible with conventional cabling. They are designed to reduce optical loss when the cable is bent. G657 Bend-insensitive singlemode pigtails provide the same high quality, mechanical features and optical performance as our standard pigtail with the added capability of maintaining optical performance when bent or flexed.
Feature
Good repeatability
Low insertion loss
High return loss
High bending performance
Good temperature stability
Tensile strength
Parameters
Specification | Parameter |
Core Diameter(um) | 9/125 |
Connectors Types | SC/ST/FC/LC/MU/E2000/DIN |
Insertion Loss(dB) | ≤0.3 |
Return Loss(dB) | PC≥50, UPC≥55, APC≥65 |
Repeatability(dB) | ≤0.2 (1000 times) |
Operating Temperature | -40~+85 |
Application
Telecommunication system
LAN, CATV
Optical access network
Data transmission
Testing equipment
Passive optical network
