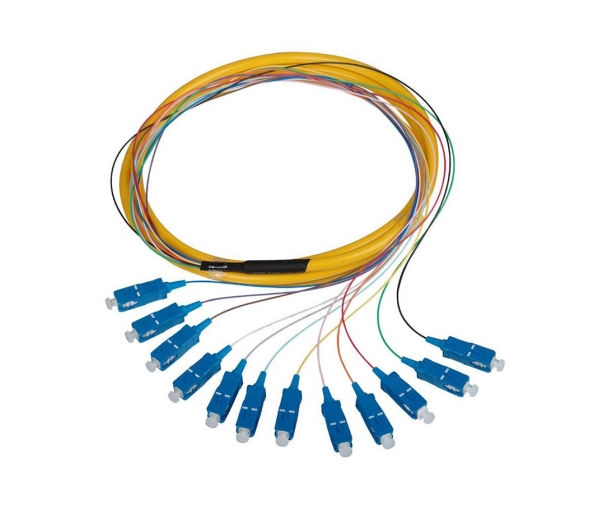

Bundle Fan-out Optical Fiber Pigtail is a piece of optical fiber cable with only one optical fiber connector on one side of the cable, there are singlemode and multimode optical fiber pigtails. They typical use is to link the optical fiber cable with fiber equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, it can reach a minimum insertion loss.
Feature
Good repeatability
Low insertion loss
High return loss
Good temperature stability
Tensile strength
Parameters
| Specification | Parameter |
| Fiber Core | 2~48 |
| Insertion Loss(dB) | ≤0.3 |
| Repeatability(dB) | ≤0.2 (1000 times) |
| Operating Temperature | -40~+85 |
Application
Telecommunication system
LAN, CATV
Optical access network
Data transmission
Testing equipment
