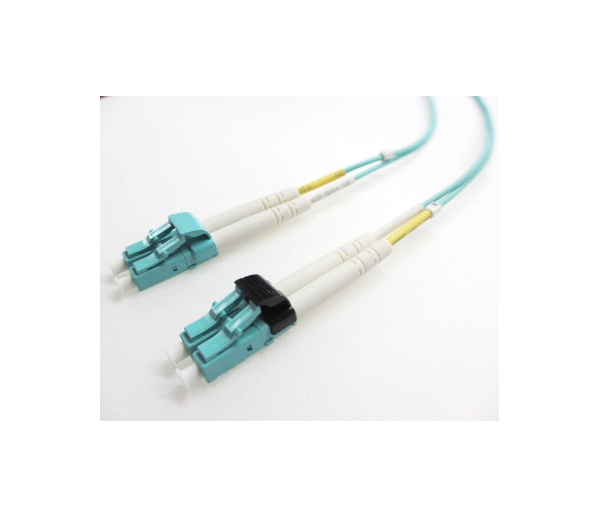

Mini-LC patchcords are designed to provide flexible interconnection between specialist high density equipment and patch panels, particularly for use in Storage Area Networks (SAN). Mini-LC connectors are designed to fit mSFP LC transceivers and have a pitch of 5.25mm instead of 6.25mm, allowing up to 64 channels in a 1U blade.
Feature
Low insertion loss
Good repeatability
High return loss
High bending performance
Good temperature stability
Tensile strength
Parameters
| Specification | SM | MM | |||||
| Core Diameter (um) | 9/125 | 62.5/125 | 50/125 | OM3 | OM4 | ||
| Surface | PC | UPC | APC | N/A | |||
| Return Loss(dB) | ≥50 | ≥55 | ≥65 | N/A | |||
| Insertion Loss(dB) | ≤0.3 | ||||||
| Repeatability(dB) | ≤0.2 (1000 times) | ||||||
| Operating Temperature | -40~+85 | ||||||
Application
Communication system
LAN
Optical access network
Data transmission
Testing equipment
Optical fiber sensor
