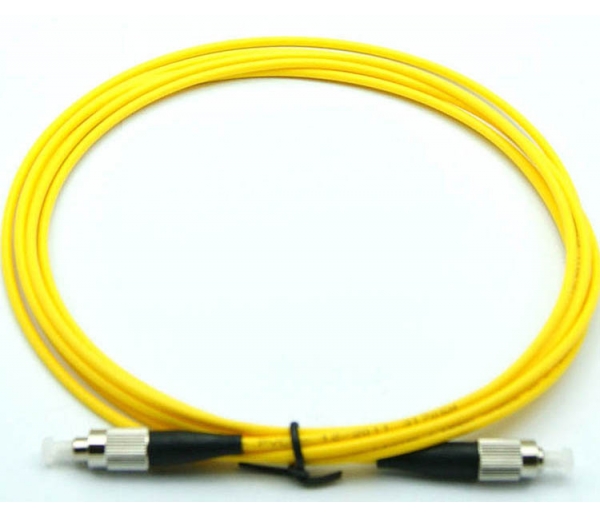

Standard Simplex/Duplex Optical Patchcord

Product Categories: Patchcords

Product advantages:

The optical fiber patchcord is one of the most consumable basic optical fiber network components. It can be made up with different kinds of connectors such as the FC, ST, SC, LC. Different types of fiber cable such as the single mode fiber and multimode fiber. We can make optical fiber patchcords as requested based on different cables. Our fiber patchcord comes in many types such as simplex, duplex and duplex flat.

PDF Download:

Product Details

The optical fiber patchcord is one of the most consumable basic optical fiber network components. It can be made up with different kinds of connectors such as the FC, ST, SC, LC. Different types of fiber cable such as the single mode fiber and multimode fiber. We can make optical fiber patchcords as requested based on different cables. Our fiber patchcord comes in many types such as simplex, duplex and duplex flat.

Feature

Low insertion loss

Good repeatability

High return loss

Mutual insert performance

Good temperature stability

Tensile strength

Parameters

Specification SM MM
Core Diameter (um) 9/125 62.5/125 50/125 OM3 OM4
Surface PC UPC APC N/A
Insertion Loss(dB) ≥50 ≥55 ≥65 N/A
Return Loss(dB) ≤0.3
Repeatability(dB) ≤0.2 (1000 times)
Operating Temperature -40~+85

Application

Communication system

LAN

Optical access network

Data transmission

Testing equipment

Optical fiber sensor
