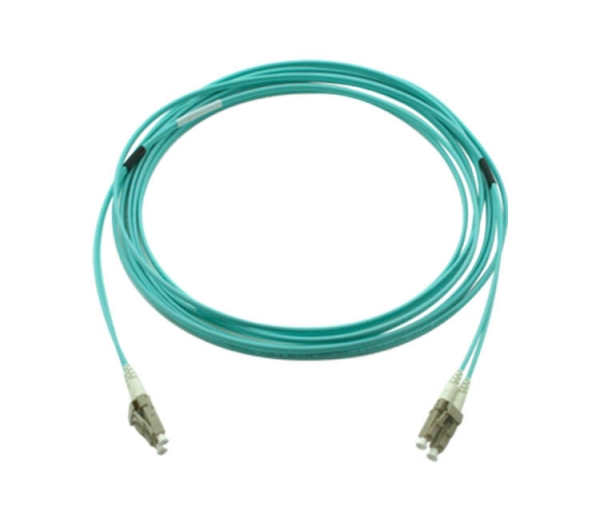

LC patchcords supplied with a short boot are ideal for high density applications with tight space requirements. The connector length from tip to boot assembly is only 40mm. These patchcords have the added benefit of being supplied with reduced bend sensitivity OM3 or OM4 optical fiber which exhibits much lower optical power loss under bend conditions while remaining compatible with conventional cabling.
Feature
Low insertion loss
Good repeatability
High return loss
High bending performance
Good temperature stability
Tensile strength
Parameters
| Specification | Parameter |
| Cable Material | LSZH |
| Crush(N) | 1000 |
| Insertion Loss(dB) | ≤0.3 |
| Repeatability(dB) | ≤0.2 (1000 times) |
| Operating Temperature | -40~+85 |
Application
Communication system
FTTH
Optical access network
Data center
Testing equipment
Optical fiber sensor
