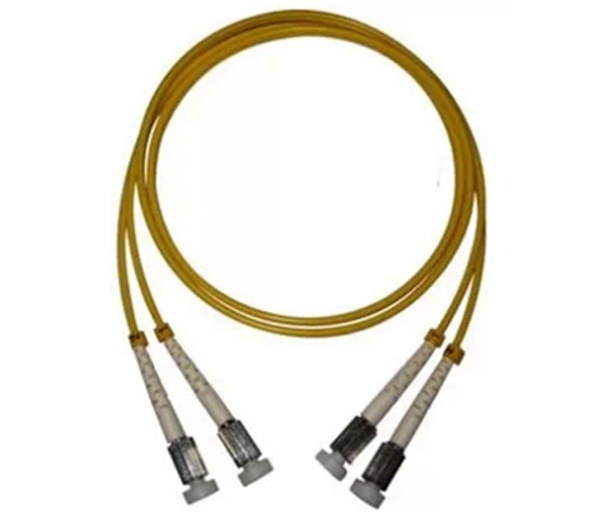

The optical fiber patchcord is one of the most consumable basic optical network components. D4 patchcord is one of a kind of commonly use patchcords. D4 Patchcord is ideal for CATV, Telecom Network, Metro, Multimedia, Data Processing, Premise Installation and Gigabit Ethernet.
Feature
Low insertion loss
Good repeatability
High return loss
Mutual insert performance
Good temperature stability
Tensile strength
Parameters
| Specification | SM | MM | |||||
| Core Diameter (um) | 9/125 | 62.5/125 | 50/125 | OM3 | OM4 | ||
| Surface | PC | UPC | APC | N/A | |||
| Return Loss(dB) | ≥50 | ≥55 | ≥65 | N/A | |||
| Insertion Loss(dB) | ≤0.3 | ||||||
| Repeatability(dB) | ≤0.2 (1000 times) | ||||||
| Operating Temperature | -40~+85 | ||||||
Application
LAN
Optical access network
Telecom network
Data transmission
Premise installation
Gigabit ethernet
