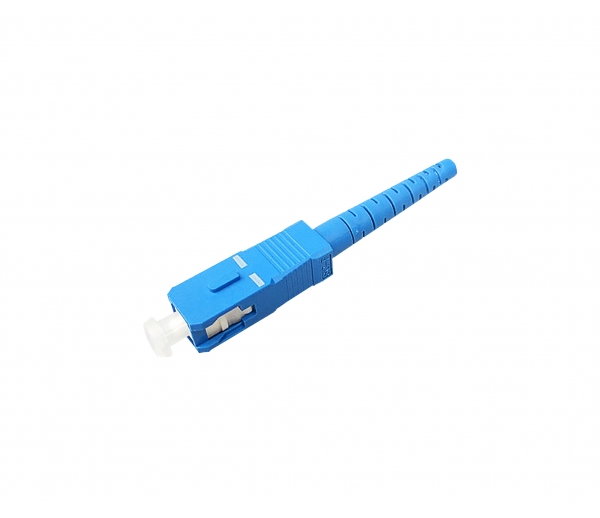

SC Connector

Product Categories: One-piece Connectors

Product advantages:

The SC connector is another popular type of 2.5mm ferrule connector. Compatible with NTT push/pull SCV connectors, the pre-assembly plug bodu provides easy and quick termination. With the plastic clip, two simplex connectors can clip together and form a duplex connector. A wide range of SC connectors are available in stock.

PDF Download:

description

The SC connector is another popular type of 2.5mm ferrule connector. Compatible with NTT push/pull SCV connectors, the pre-assembly plug bodu provides easy and quick termination. With the plastic clip, two simplex connectors can clip together and form a duplex connector. A wide range of SC connectors are available in stock.
Parameter

Parameters

Parameter SM MM
Insertion Loss(dB) Concentricity<1.0um ≤0.3 ≤0.3
Low Loss(dB) Concentricity<0.5um ≤0.2 ≤0.2
Surface PC UPC APC N/A
Return Loss(dB) ≥50 ≥55 ≥60 N/A
Repeatability(dB) ≤0.3 (500 times)
Operating Temperature -40~+85

Feature:

Low insertion loss
High return loss
High interface performance
Good repeatability and exchangeability
High precision alignment

Application

LAN, WAN, CATV
Telecom network
Data processing network
Medical industry and military industry
Testing equipment
