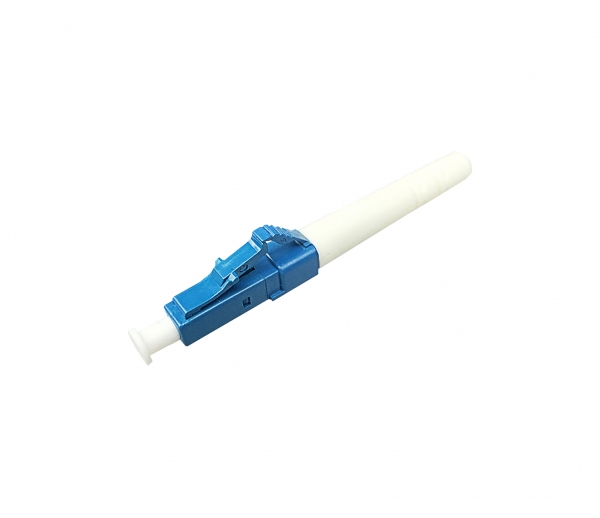

LC Connector

Product Categories: One-piece Connectors

Product advantages:

The next generation optical fiber connector tends to be more compact and user-friendly. The innovative LC design is one of the best examples. LC connectors are available in simplex and duplex with low loss 1.25mm ferrule and small form factor (SFF) for reliable and high density connections.

PDF Download:

description

The next generation optical fiber connector tends to be more compact and user-friendly. The innovative LC design is one of the best examples. LC connectors are available in simplex and duplex with low loss 1.25mm ferrule and small form factor (SFF) for reliable and high density connections.

Feature

Low insertion loss

High return loss

High interface performance

Good repeatability and exchangeability

High precision alignment

Parameters

Parameter SM MM
Insertion Loss(dB) Concentricity<1.0um ≤0.3 ≤0.3
Low Loss(dB) Concentricity<0.5um ≤0.2 ≤0.2
Surface PC UPC APC N/A
Return Loss(dB) ≥50 ≥55 ≥60 N/A
Repeatability(dB) ≤0.3 (500 times)
Operating Temperature -40~+85

Application

LAN, WAN, CATV

Telecom network

Data processing network

Medical industry and military industry

Testing equipment
