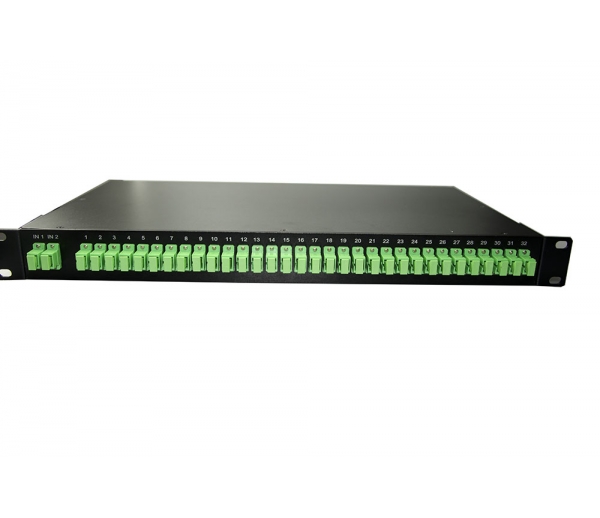

Planar Lightwave Circuit (PLC) Splitter is an important passive optical components in dividing power, is widely used in FTTx systems, MAN, WAN, CATV, especially in EPON/GPON systems and other passive optical devices. It has small size, high reliability, wide operating wavelength range. They have 1*N and 2*N styles can be choose.
Feature
Wide working wavelength
Low insertion loss
Low PDL
High reliability and stability
Good spectral uniformity
Parameters
| Specification | Parameter | |||||
| Operating Wavelength(nm) | 1260-1650 | |||||
| Fiber Type | G652D, G657A1 | |||||
| Connector Type | FC, ST, SC, LC | |||||
| Type | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Insertion Loss(dB) | ≤4.5 | ≤7.6 | ≤11 | ≤14.8 | ≤17.9 | ≤21.5 |
| Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 |
| PDL(dB) | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 |
| Directivity(dB) | ¨R50 | |||||
| Operating Temperature | -40~+85 | |||||
Application
Communication system
EPON/GPON
FTTH/FTTx
LAN
CATV
Optical testing equipment
