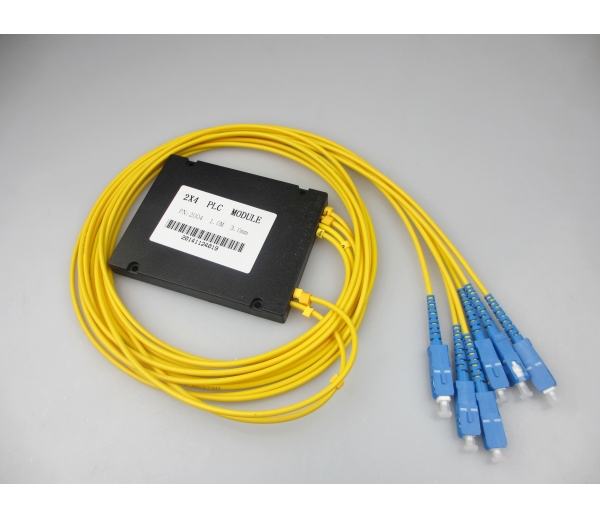

Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in EPON networks to realize optical signal power splitting.
Feature
Wide working wavelength
Low insertion loss
Low PDL
High reliability and stability
Good spectral uniformity
Good channel-to-channel uniformity
Parameters
| Specification | Parameter | |||||
| Operating Wavelength(nm) | 1260-1650 | |||||
| Fiber Type | G657A1 | |||||
| Connector Type | FC, ST, SC, LC | |||||
| Type | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Insertion Loss(dB) | ≤4.4 | ≤7.7 | ≤10.8 | ≤14 | ≤17.3 | ≤20.5 |
| Uniformity(dB) | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.8 | ≤2.3 | ≤2.5 |
| PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 |
| Size(L*W*H)(mm) | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Directivity(dB) | ¨R55 | |||||
| Operating Temperature | -40~+85 | |||||
Application
Communication system
EPON/GPON
FTTH/FTTX
LAN
CATV
Optical testing equipment
