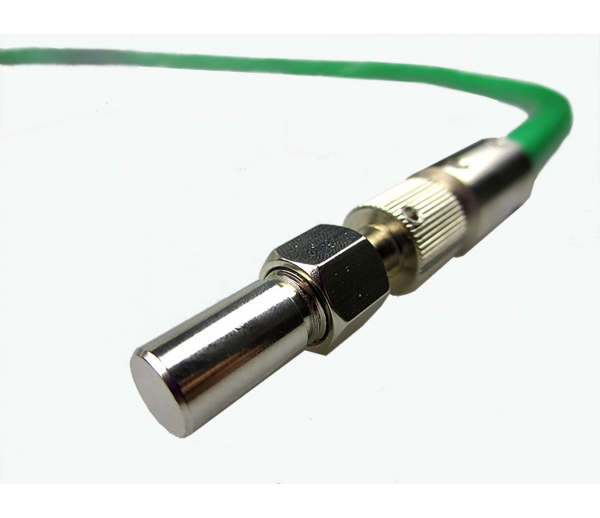

D80 Armored Patchcords

Product Categories: Energy Fiber Series

Product advantages:

D80 fiber Connectors with a Copper based high-accuracy fiber ferrule for effective heat removal, fine polished fiber end face with Sapphire mode strip can hold an average laser power up to 600w.

PDF Download:

description

D80 fiber Connectors with a Copper based high-accuracy fiber ferrule for effective heat removal, fine polished fiber end face with Sapphire mode strip can hold an average laser power up to 600w.

Feature

Sapphire protection connector
High quality stainless steel armored protection
Available in various size of core

Parameters

Parameter SI400 SI600
Core Diameter(um) 400 600
Numerical Aperture 0.22
Cladding Diameter(um) 500 750
Fiber Diameter(um) 780 960
Screening of Strength(kpsi) ≥50
Min. Bend Radius(mm) 100 150

Application

High power laser transmission
Laser welding, cutting
Atmosphere spectrum measurement
Laser cleaning
