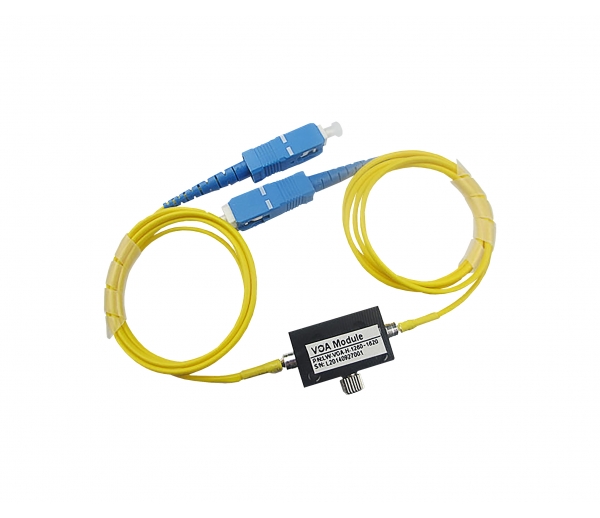

The variable attenuator is a kind of fiber optic attenuator that supports continuous adjustment of attenuation value between 0.6dB. It employs the principle of light shading between the two collomators to control the attenuation value by a knob that can be manually rotated. This range of variable optical attenuator offers adjustment accuracy up to 0.1dB.
Parameters
| Specification | Parameter |
| Operating Wavelength (nm) | 1310±30(nm) & 1550±30(nm) |
| Connector | FC, ST, SC, LC, E2000, MU |
| Adjustment Accuracy(dB) | ≤0.02 |
| PDL(dB) | ≤0.1 |
| Attenuation Adjustable Range(dB) | 0-30 |
| Return Loss(dB) | £¾50 |
| Operating Temperature | -20~+80 |
Feature
Small size and low insertion loss
High repeatability and resolution
High accuracy and stable attenuation
The length of pigtail can be customized
Wide adjustable range of attenuateion values
Application
CATV
DWDM network
Optical communication system
Optical fiber communication labs
Testing system of passive optical devices
